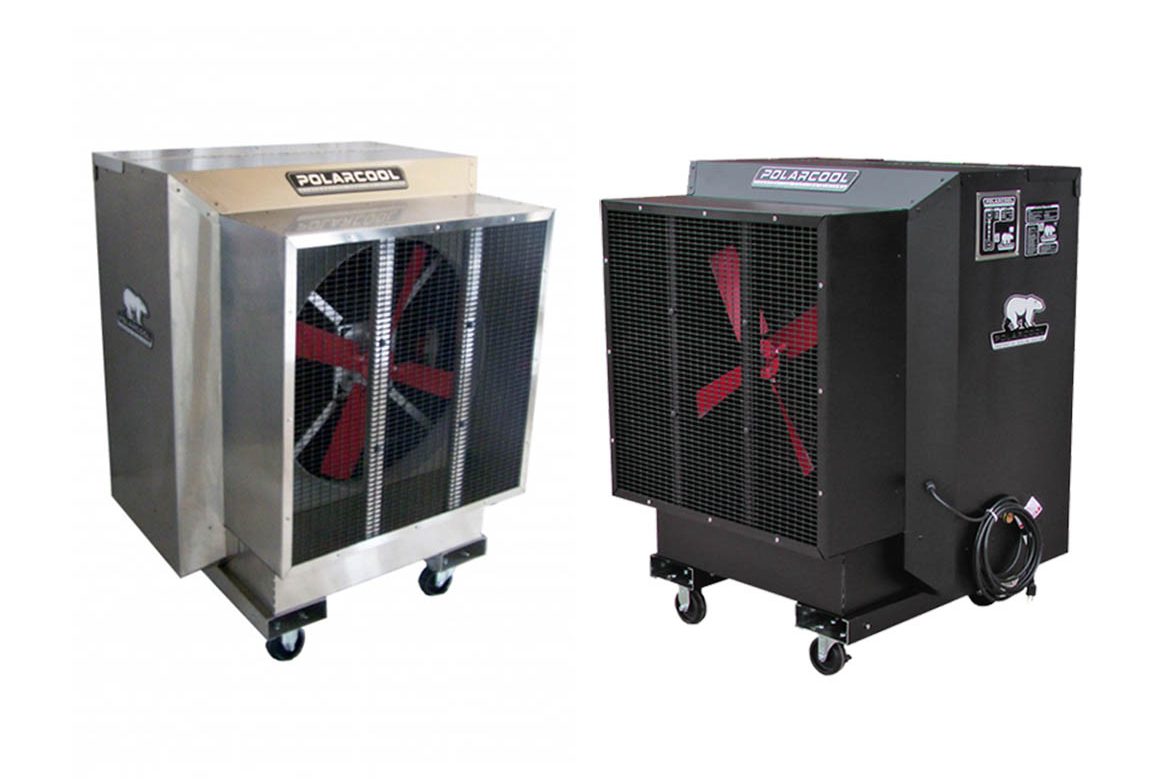

24″ PolarCool Fans – Evaporative Coolers
Ship Dimensions (in.) – 56h x 47w x 40d
Weight (lbs) (No Water) – 310
Noise Levels in Decibels
Low – 18.5Med – NAHigh – 37
24” Variable Speed #6622-4601 (115v) – Stainless – Buy Now @ PolarCoolStore.com
Click thumbnails below to enlarge.
24” Variable Speed #6622-1100 (115v) – Black Powder Coated – Buy Now @ PolarCoolStore.com
Click thumbnails below to enlarge.
Benefits and Features
Small and Convenient Unit – Provides excellent air flow and cooling in areas where space is limited.
FAST SHIPPING – we offer fast shipping to all lower 48 U.S. state with online orders.
Stainless Steel Cabinet (Product #6622-4601) – Gives you durability and long life. Holds its shape in the sunlight and allows you to wipe it clean after many years of use.
Black Powder Coated Galvanized Steel Cabinet (Product #6622-1100) – Also provides durability and long life with a powder coated galvanized steel housing.
Variable Speed System – Provides 10 speeds to choose from. With ten speeds this unit can provide effective spot-cooling for multiple applications.
Anti-Bacterial Coating – on the paper media (pads) keeps bacterial growth down plus gives structural strength and extends the life of the pads.
Hinged Top Cover – Providing easy access and maintenance to the pads. The pads will need to be removed and cleaned periodically. Provides direct access to internal components.
Specifications and Performance
Reference Manuals #4801-5035, #4801-5312, #4801-5314, #4802-5200, #4802-5076
The following table shows estimates of the performance of the 24” PolarCools. These values could vary depending on the particular installation and operating conditions.
Note 1: This estimate is under 90+ degree conditions; cooler temperatures will result in less water usage.
Note 2: Cooling is very dependent on the relative humidity, temperature and area being cooled.
Temperature Differential Readings
The temperature drop from inlet to exit is very dependent on relative humidity and temperature. The higher the ambient temperature and the drier the air, the greater the drop. A temperature drop of 10 to 20 degrees is common.
Weights and Dimensions
Unit Dimension (inches) – 48h x 37w x 35d
Shipping Dimensions (inches) – 56h x 47w x 40d
Weight (lbs) (No Water) – 310
Weight (lbs) (Water Added) –
Noise Levels in Decibels
Low – 18.5 Med – NA High – 37
