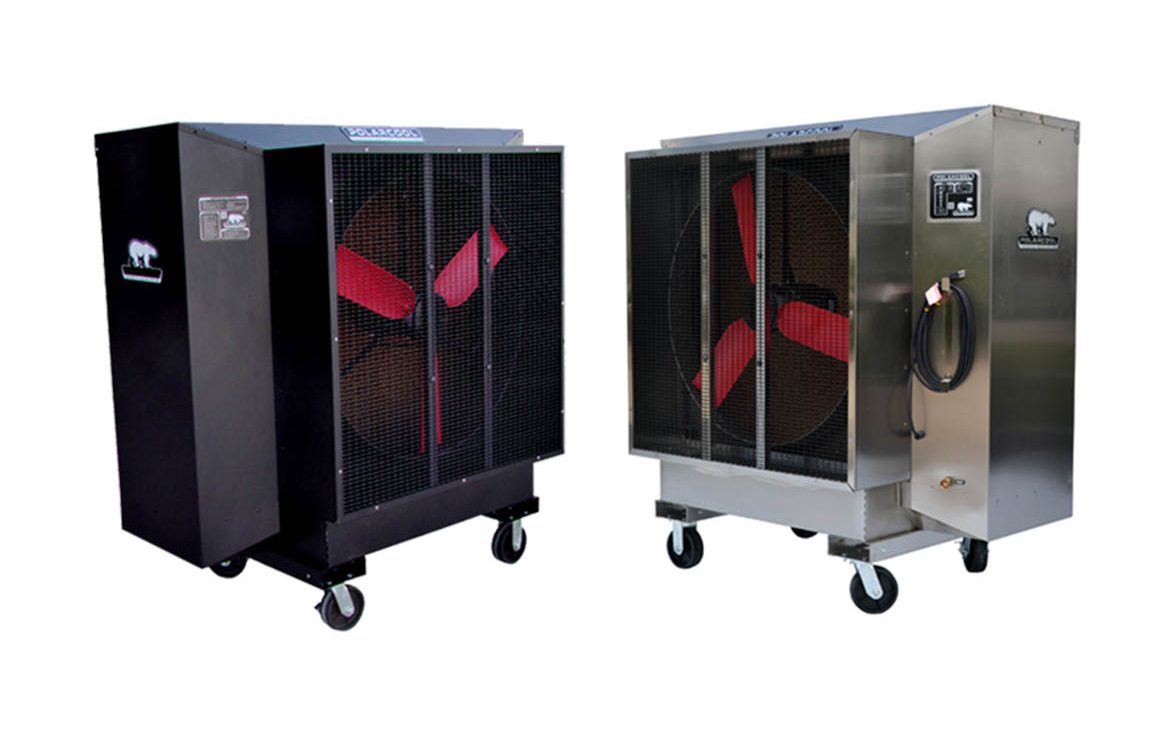

36″ PolarCool Fans – Evaporative Coolers
36” Variable Speed #6622-2502 (115v) – Stainless – Buy Now @ PolarCoolStore.com + Free Shipping!
36” Variable Speed #6622-1200 (115v) – Black Powder Coated – Buy Now @ PolarCoolStore.com + Free Shipping!
Benefits and Features
FREE SHIPPING – we offer free shipping on all online orders in the lower 48 U.S. on ALL fans.
Stainless Steel Cabinet (Product #6622-2502) – Gives you durability and long life. Holds its shape in the sunlight and allows you to wipe it clean after many years of use.
Black Powder Coated Galvanized Steel Cabinet (Product #6622-1200) – Also provides durability and long life with a powder coated galvanized steel housing.
Variable Speed System (36” VS Only) – Provides 10 speeds to choose from.
Touch Pad Interface (36”VS Only) – A modern touch pad interface that allows control of both pump and fan speeds. With our touch pad interface, just push the ON button for the pump. Then press ON button for the fan and select one of the 10 different speeds.
Low Water Shut Off (36 VS Only) – Shuts off the pump, for protection, just in case the water runs out or limited amount of water in reservoir.
Anti-Bacterial Coating-on the paper media (pads) keeps bacterial growth down plus gives structural strength and extends the life of the pads.
Hinged Top Cover – Providing easy access and maintenance to the pads and unit.
Specifications and Performance
Reference Manuals #4801-5035, #4801-5312, #4801-5314, #4801-5202, #4801-5208, #4802-5200, #4802-0157, #4802-5079, #4802-5076
The following table shows estimates of the performance of the 36” PolarCools. These values will vary depending on the particular installation and operating conditions.
Note 1: This estimate is under 90+ degree conditions; cooler temperatures will result in less water usage.
Note 2: Cooling is very dependent on the relative humidity, temperature and area being cooled.
Temperature Differential Readings
The temperature drop from inlet to exit is very dependent on relative humidity and temperature. The higher the ambient temperature and the drier the air, the greater the drop. A temperature drop of 10 to 20 degrees is common.
Weights and Dimensions (36” VS Only)
Unit Dimension (inches) – 61w x 63h x 36d
Shipping Dimensions (inches) – 69w x 70h x 43d
Weight (lbs) (No Water) – 481
Weight (lbs) (Water Added) –
Noise Levels in Decibels
36” VS Low – 22 Med – 31 High – 33.5
36” SS NA NA High – 33.5
